Features
- UBX-M8030 high performance GPS/GNSS Chips:
- Over 2 million effective correlators
- 72 channels in Search mode
- Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
- Up to 10 Hz navigation update rate
- Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo • Supports AGPS
- Integrated TCXO,LNA,SAW,RTC

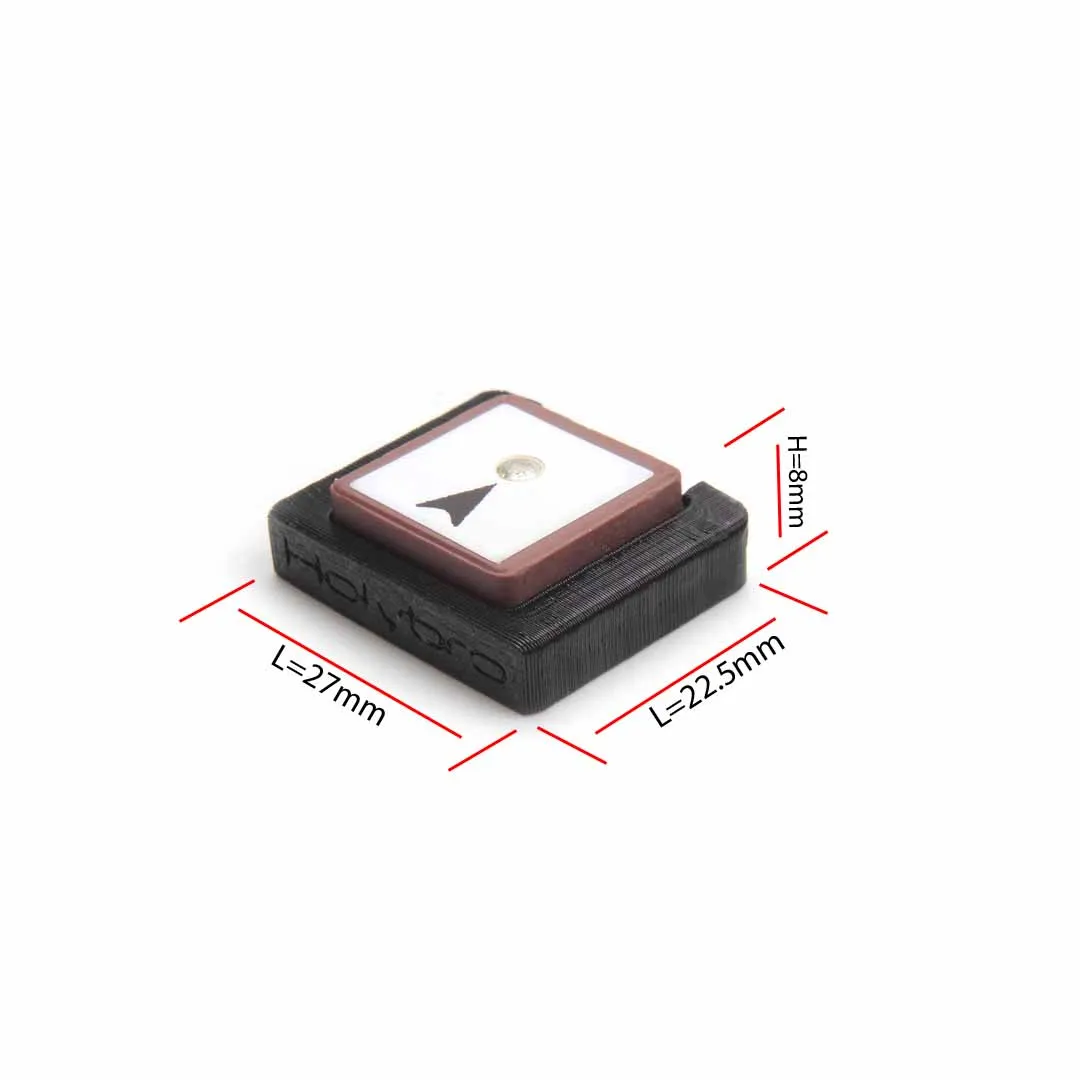

- Compact size (23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
- Weight 7.8 grams without TPU Protective Case Shell
- Support standard NMEA 0183,UBX
- This module is equipped with QMC5883 compass
Performance
- A1 All satellites at -130 dBm
- A2 CEP, 50%, 24 hours static, -130 dBm, > 6 SVs
- A3 Assuming Airborne < 4g platform

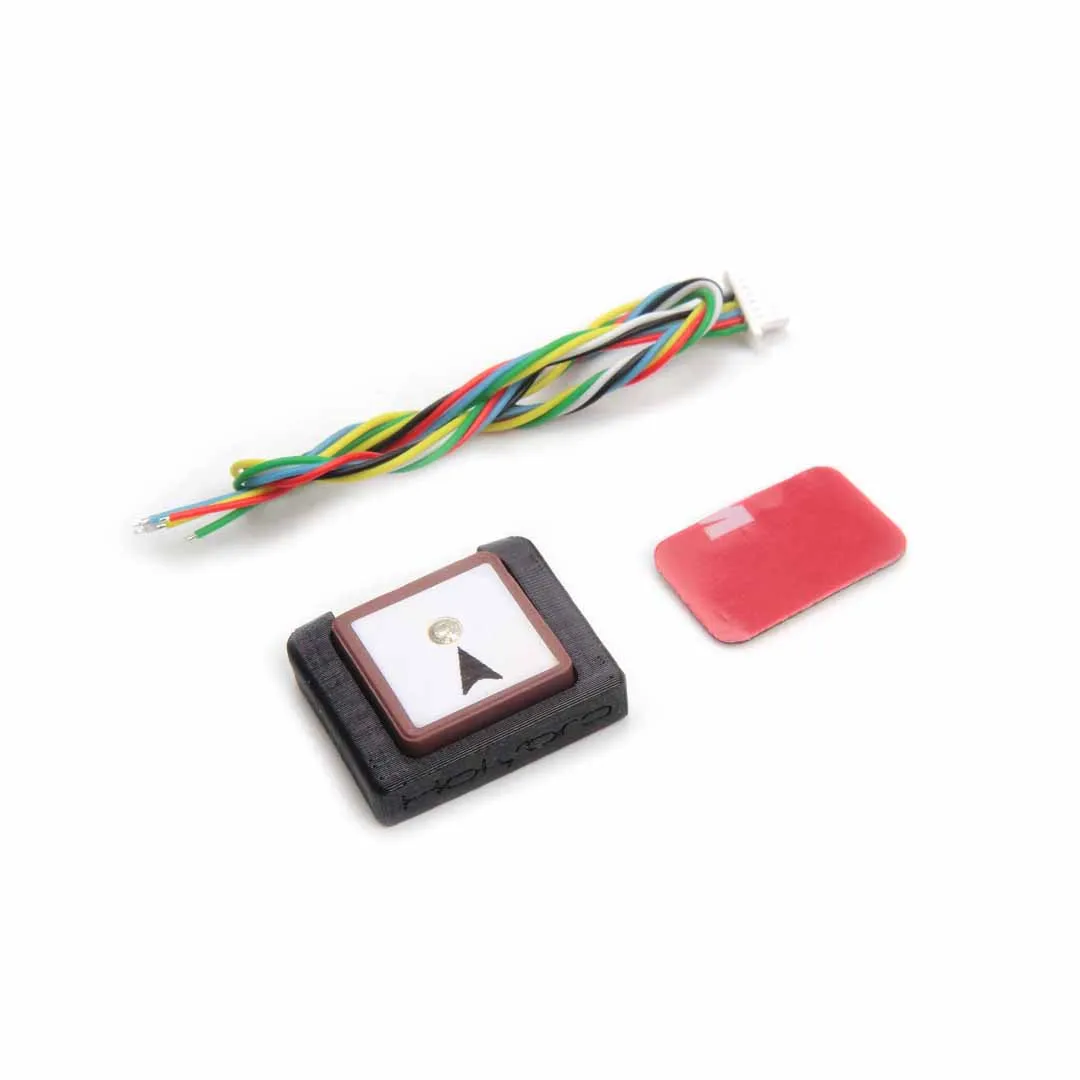

Package Included:
- Nano Ublox M8 5883 GPS Module *1
- JST 6P Cable *1

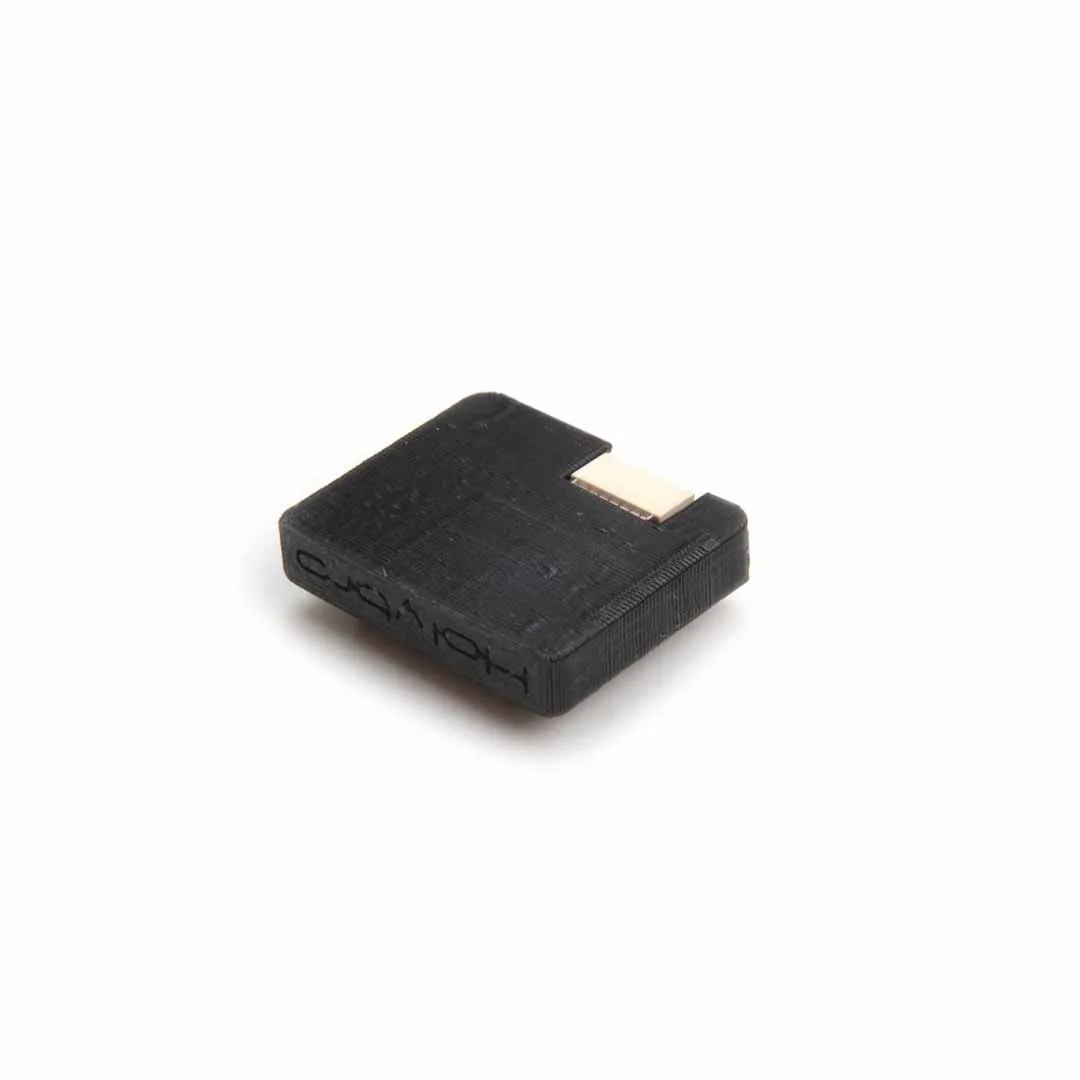

- TPU Protective Case Shell *1
